Dali 12V Lithium Iron Phosphate Battery Protection Board with Cell Balancing for 4S LiFePO4 Packs

This battery management system provides comprehensive protection for 12V lithium iron phosphate battery packs configured with four cells in series. Designed specifically for LiFePO4 chemistry, it monitors cell voltages and manages charging/discharging processes to prevent dangerous conditions while extending battery life. The board's primary functions include overcharge protection, over-discharge prevention, short circuit protection, and temperature monitoring where applicable. Available in a wide range of current ratings from 15A to 500A, it caters to applications from small solar systems to high-power electric vehicles. The inclusion of passive cell balancing ensures all four cells maintain uniform voltage levels, which is essential for maximising pack capacity and preventing individual cell deterioration. Higher current models feature integrated cooling fans to dissipate heat during continuous high-load operation.

Features and Construction

The protection board is engineered around the specific voltage characteristics of lithium iron phosphate cells, which operate at approximately 3.2V per cell. The 4S configuration produces a nominal 12.8V system voltage, making it compatible with standard 12V electrical systems. Construction focuses on reliable operation across the specified current ranges, with higher-rated models incorporating additional thermal management components.

Material and Build

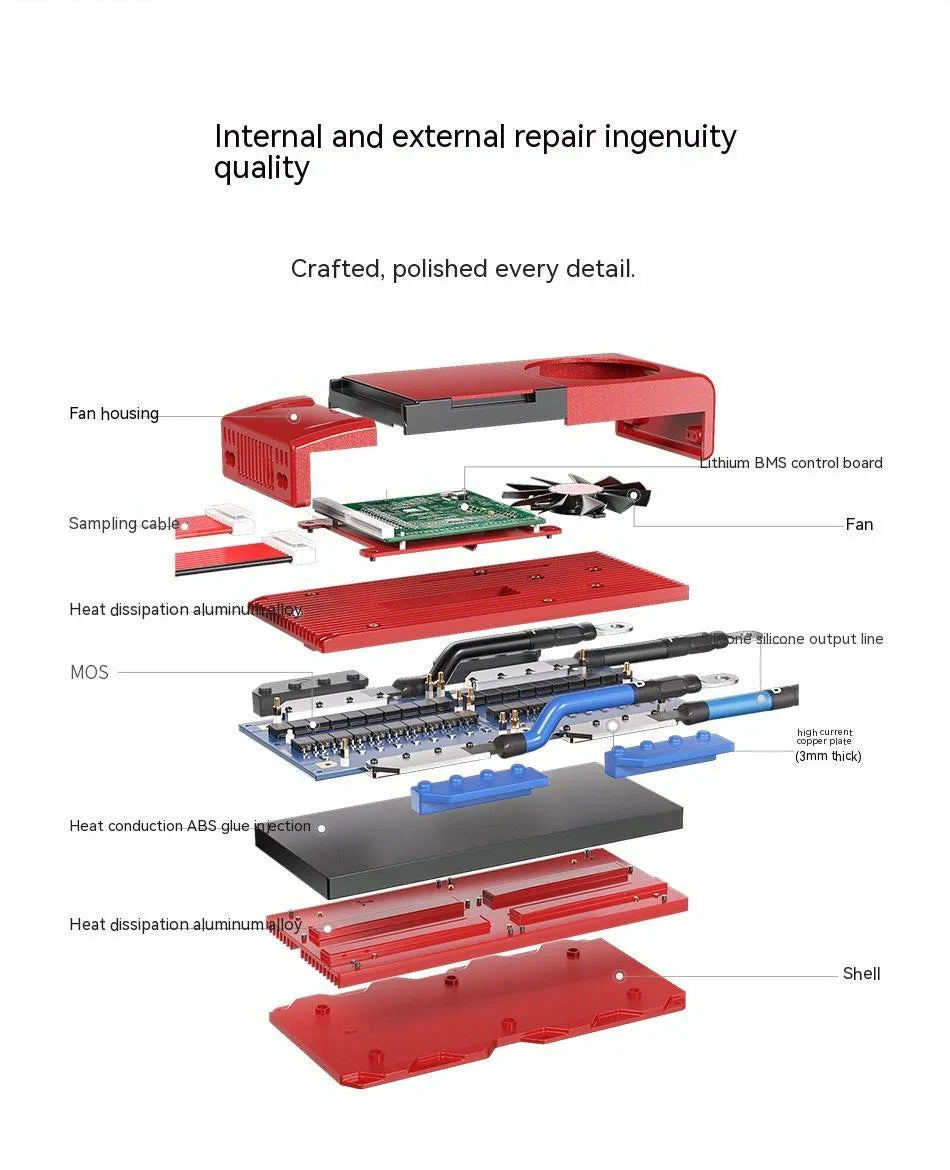

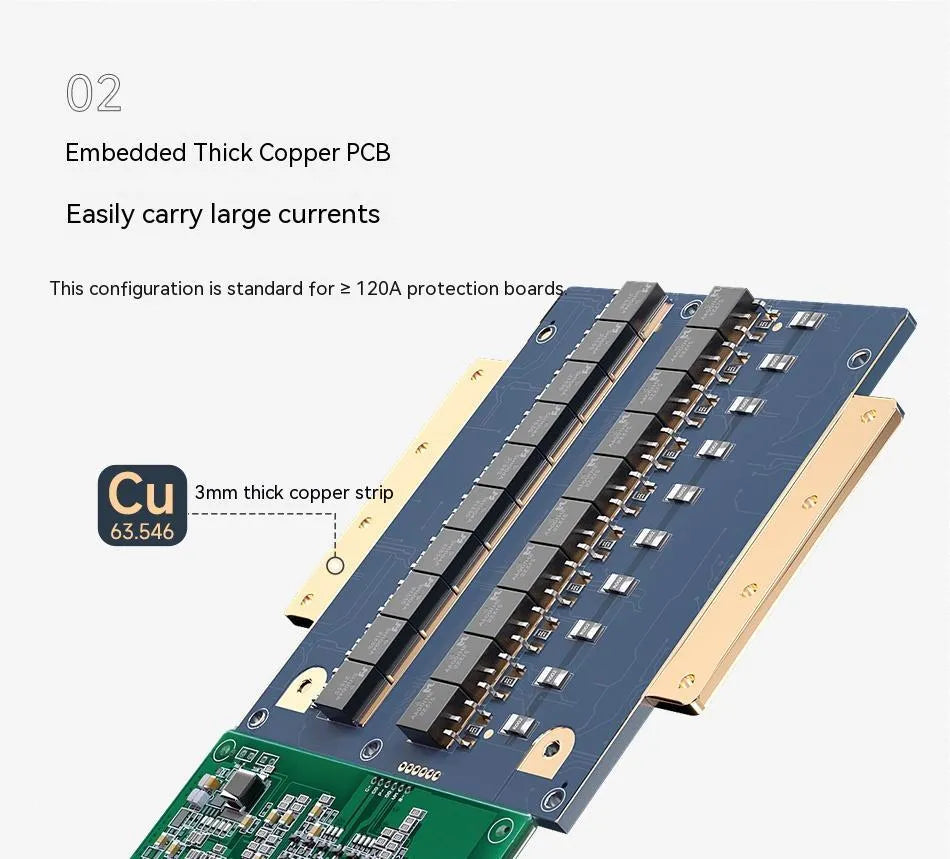

The board utilises a printed circuit board populated with protection ICs, MOSFETs for current handling, balancing resistors, and monitoring components. Higher current models employ larger MOSFET arrays and thicker copper traces to handle increased power dissipation. Models equipped with cooling fans include aluminium heat sinks bonded to power components and plastic housings to direct airflow. The same-port design simplifies wiring by using common positive and negative terminals for both charging input and load output connections.

Size and Practical Fit

While specific dimensions aren't provided, the board's design accommodates installation within battery enclosures or external mounting. The compact form factor allows integration into various battery pack configurations. Higher current models with cooling fans require additional space for airflow around the fan intake and exhaust areas. Installation typically involves connecting the board's balance wires to each cell's positive terminal in the 4S chain, plus the main positive and negative pack connections.

Uses and Placement

This BMS enables safe operation of LiFePO4 batteries across numerous applications where 12V power is required. The different current ratings allow matching protection to specific power demands, from modest energy needs to substantial power delivery requirements.

Event or Professional Use

Higher current models (100A to 500A) suit professional applications including electric vehicles, forklift batteries, marine propulsion systems, and industrial backup power. The fan-cooled versions maintain stable operation during sustained high-current draws in these demanding environments. Solar installation companies utilise these boards in off-grid power systems where reliable battery protection is essential for system longevity. RV and camper van conversions benefit from the balanced charging that prevents cell mismatch in frequently cycled battery banks.

Everyday Home Use

Lower current models (15A to 80A) serve residential applications including solar storage, uninterruptible power supplies, and recreational vehicle house batteries. The balancing function is particularly valuable in home energy systems where batteries undergo regular charge cycles. Garden solar lighting installations, portable power stations, and hobby projects using LiFePO4 cells all require the protection these boards provide. The same-port design simplifies installation for DIY enthusiasts building custom battery packs for various household applications.

Benefits and Buying Value

Selecting the appropriate current rating ensures the protection board operates within its design parameters while providing adequate overhead for peak loads. The availability of both fan-cooled and non-fan versions allows matching thermal management to expected operating conditions.

Reuse and Low Maintenance

The protection board requires minimal maintenance beyond occasional inspection of connections. The passive balancing system operates automatically during charging without user intervention. Properly installed, it can protect battery packs through thousands of charge cycles, significantly extending the useful life of expensive LiFePO4 cells. The durable construction of higher-rated models with heat sinks and fans supports continuous operation in challenging environments.

Why Choose This Product

This BMS addresses the specific protection requirements of lithium iron phosphate chemistry, which differs from other lithium-ion variants. The wide current range availability allows precise matching to application needs without overpaying for excessive capacity. The inclusion of balancing on all models prevents the gradual capacity loss that occurs in unbalanced packs. For high-current applications, the fan-cooled options provide active thermal management unavailable on basic protection boards. The same-port design reduces installation complexity compared to separate charge/discharge port configurations.
