Silicon Labs EFR32MG21 Zigbee 3.0 USB Dongle for Smart Home Gateways and Home Assistant

This USB dongle serves as a dedicated Zigbee 3.0 radio transceiver, designed to enable local control of Zigbee-based smart home devices. It bridges the gap between Zigbee wireless networks and software running on a host computer, such as Home Assistant with its ZHA integration or the Zigbee2MQTT bridge. By being pre-configured with the EmberZNet Serial Protocol (EZSP) version 8, it offers a streamlined setup process for creating a personal, cloud-independent smart home hub. Its core function is to translate serial commands from software into Zigbee radio signals, allowing you to connect and manage compatible lights, sensors, switches, and other devices directly.

Features and Construction

The dongle's capabilities are defined by its specific hardware and firmware configuration. It is built for reliable serial communication and robust wireless transmission to support a local smart home network.

Material and Build

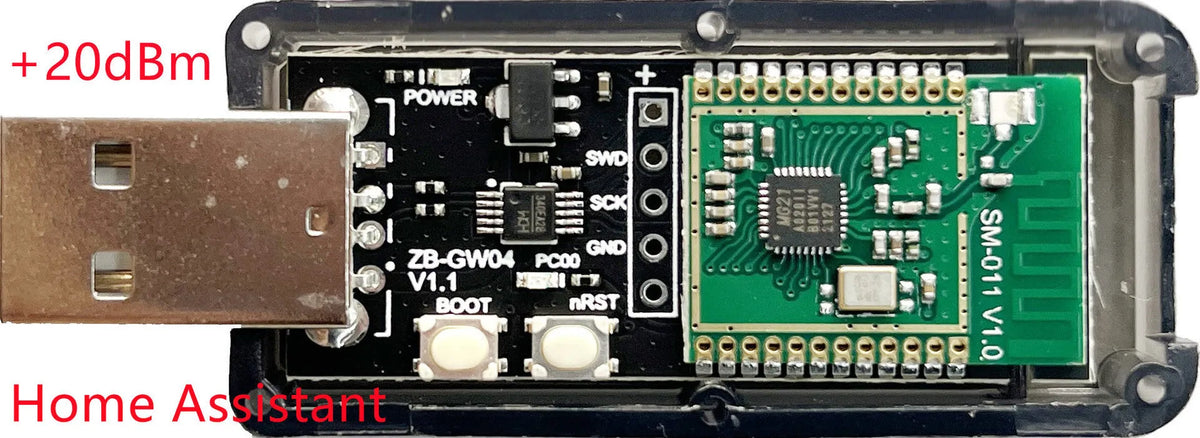

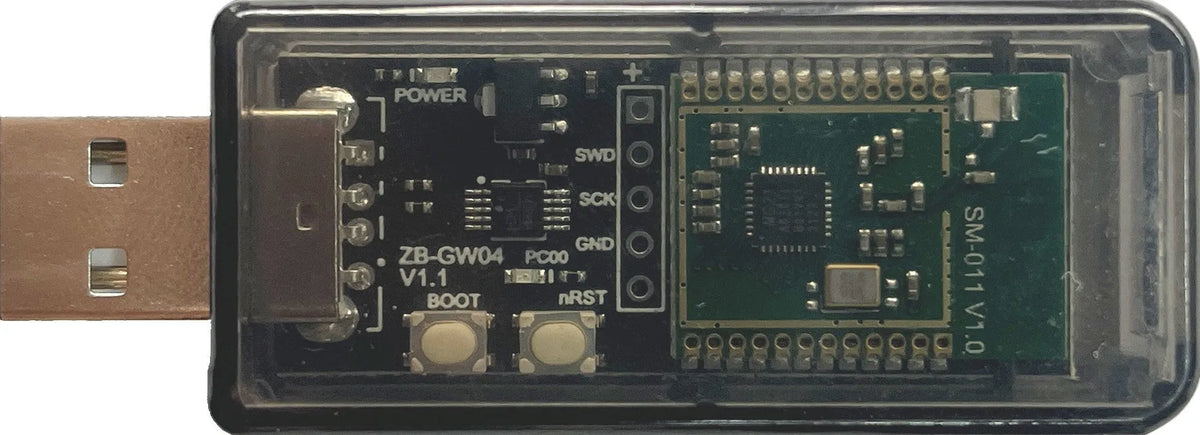

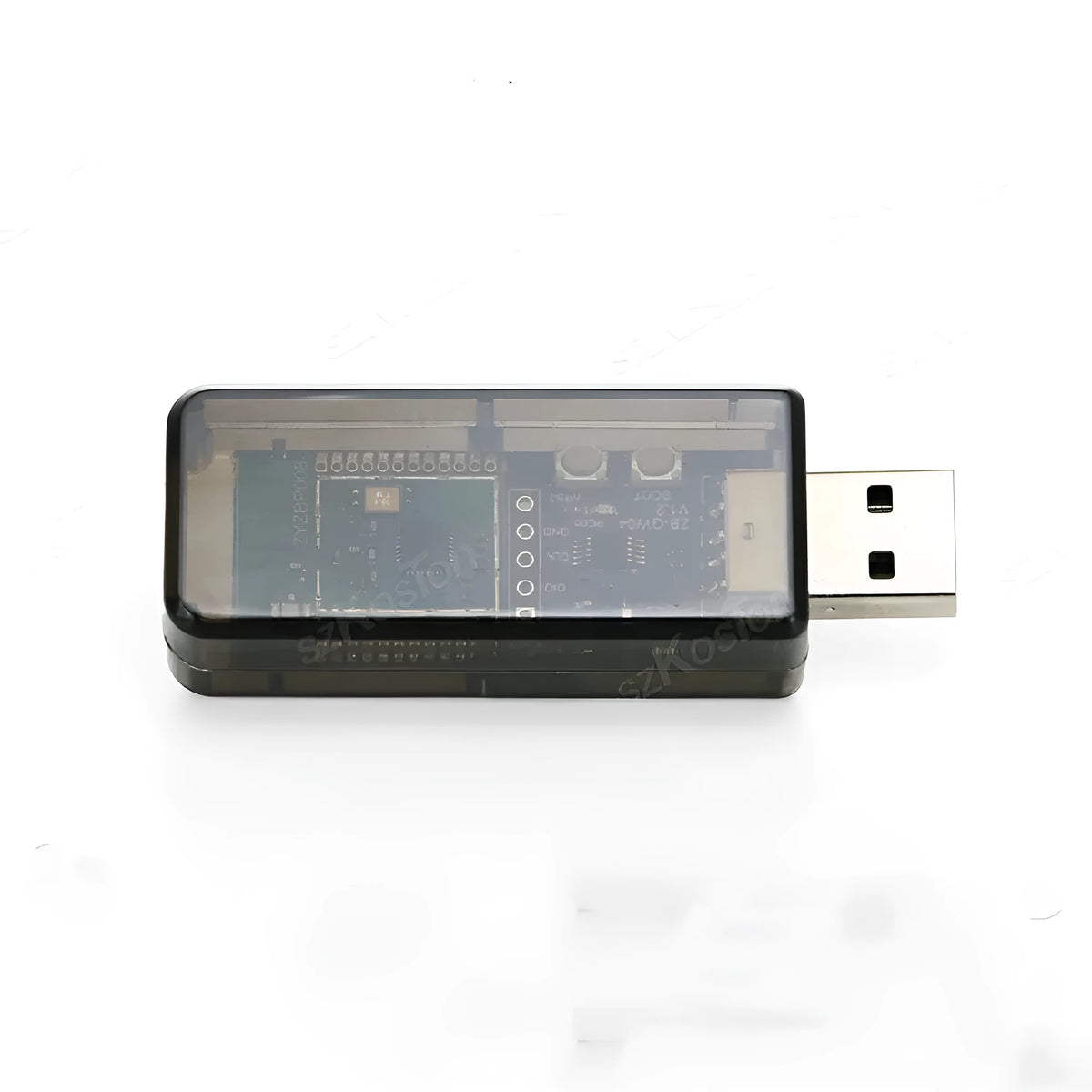

The device is enclosed in a plastic shell, providing physical protection for the internal electronics. The primary internal components are the Silicon Labs EFR32MG21 wireless System-on-Chip (SoC), which handles the Zigbee protocol stack and radio functions, and the CH340E chip, which manages the conversion between USB and serial UART signals. This combination forms the essential hardware link between your computer's USB port and the Zigbee network.

Size and Practical Fit

The dongle uses a standard USB Type-A connector, ensuring broad compatibility with most computers, Raspberry Pi boards, and other devices with a USB host port. Its compact form factor is intended to be plugged in and left in place, functioning as a permanent part of a home automation server setup. The integrated PCB antenna is designed to provide adequate signal coverage without the need for an external antenna, simplifying the physical installation.

Uses and Placement

This product is aimed at users who want to build or migrate to a self-hosted smart home system, prioritising local control and avoiding vendor-locked ecosystems.

Event or Professional Use

For advanced users or those setting up a dedicated home automation server, this dongle acts as the central Zigbee coordinator. It is compatible with popular open-source platforms; it can be used with the ZHA (Zigbee Home Automation) integration within Home Assistant or with Zigbee2MQTT software. This makes it suitable for integrating devices from various manufacturers into a single, cohesive system managed from one interface.

Everyday Home Use

The key benefit for everyday use is the creation of a reliable, local smart home network. Once configured with software like Home Assistant, the dongle allows for the control of Zigbee devices without an internet connection for basic operations, potentially increasing response speed and system reliability. It supports a wide range of Zigbee 3.0 and Zigbee HA 1.2 devices, including bulbs, plugs, motion sensors, and door/window contacts.

Benefits and Buying Value

The value of this dongle lies in its specific pre-configuration and the flexibility it offers compared to proprietary gateways.

Reuse and Low Maintenance

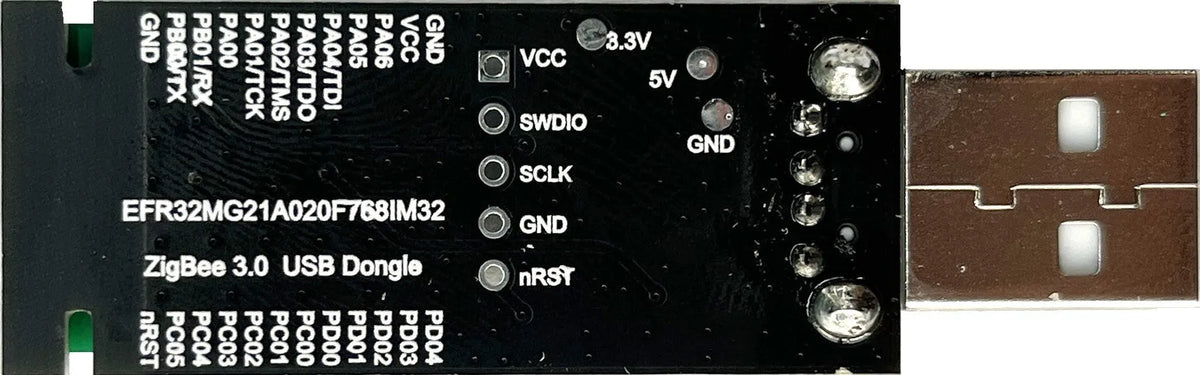

The device supports firmware updates via its UART interface, allowing for potential future enhancements or bug fixes. The update process involves a specific button sequence: pressing and holding the BOOT button, then pressing and releasing the nRST button, before finally releasing the BOOT button. This ensures the product can be maintained and kept up-to-date with protocol developments.

Why Choose This Product

This dongle is a practical choice because it arrives pre-flashed with the necessary EZSP v8 firmware, eliminating a complex flashing step for the end user. The +20dBm output gain from its PCB antenna is designed to offer a strong radio signal for better network range and device connectivity within a home environment. Its operation at a 115200 baud rate is a standard and widely supported setting for serial communication, ensuring compatibility with host software.
