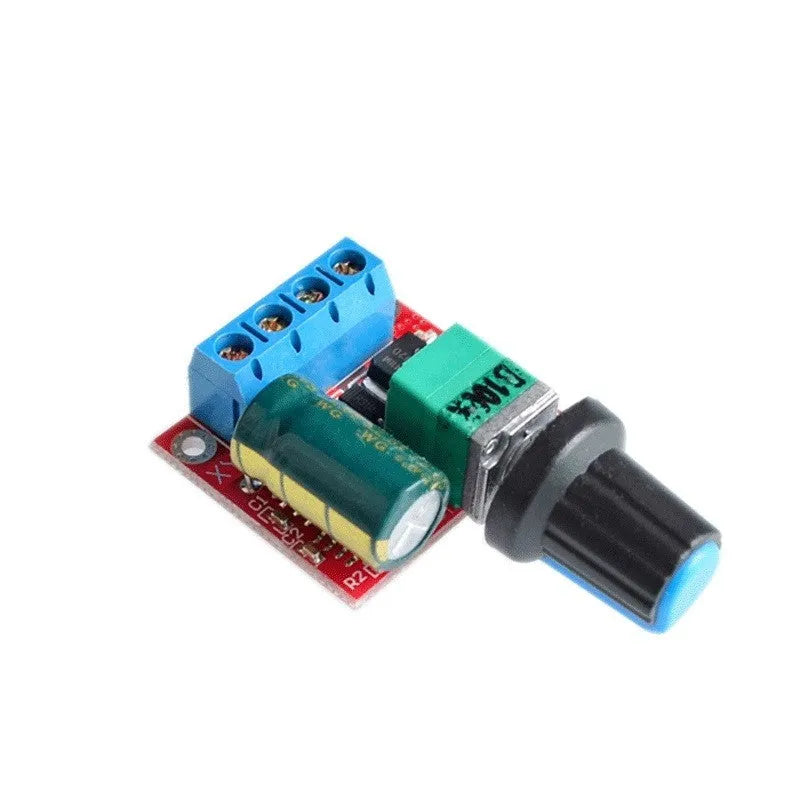

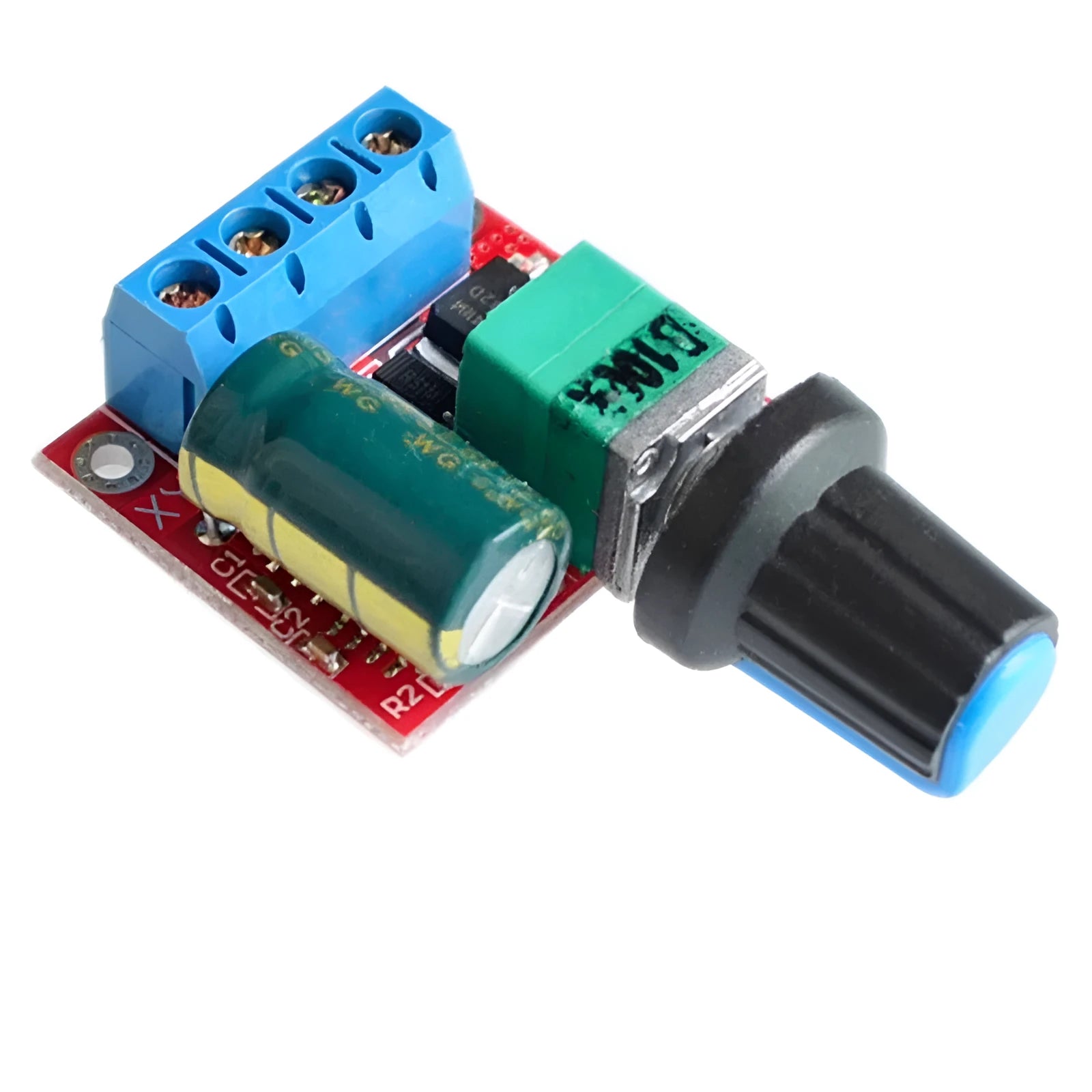

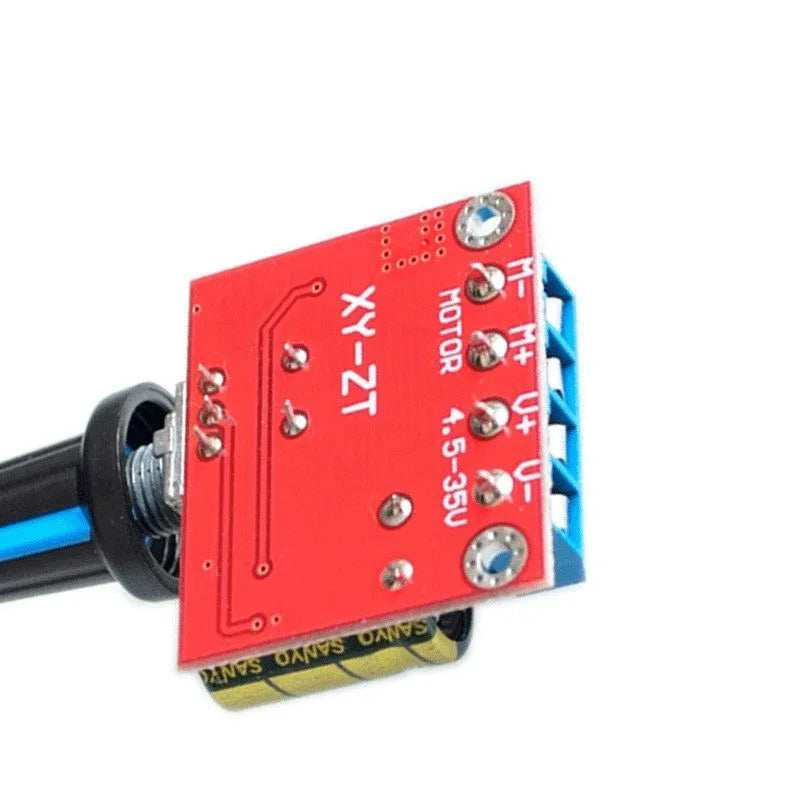

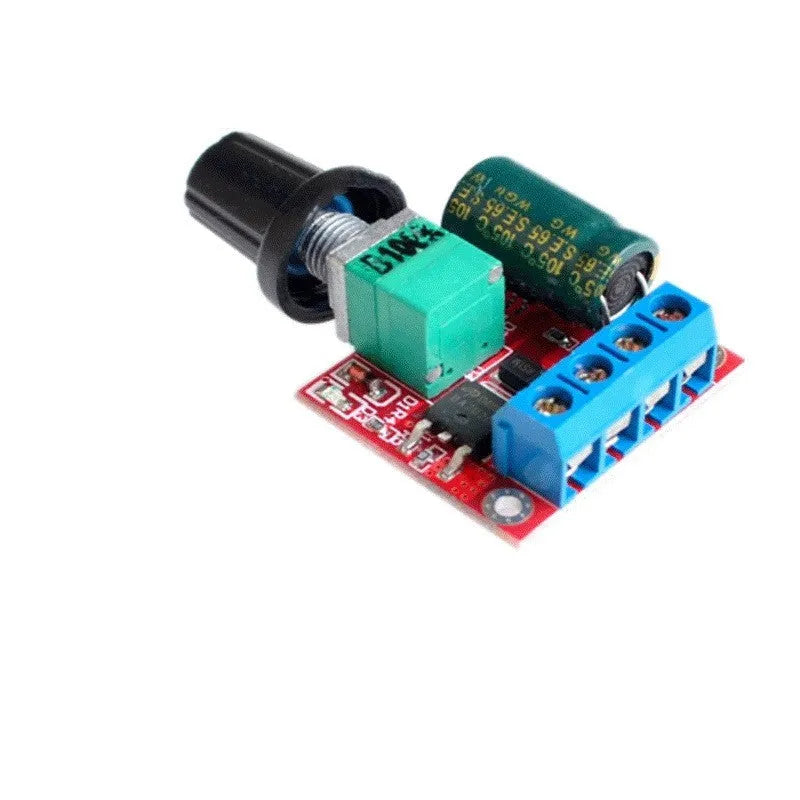

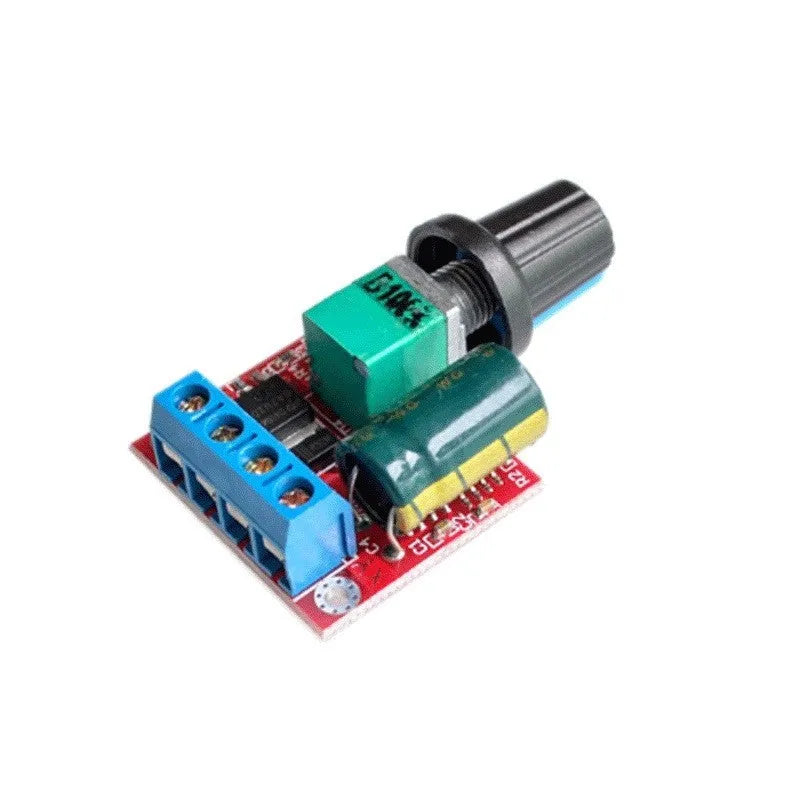

PWM DC motor governor for 5V-35V speed regulation with 5A output and compact 30mm design

This PWM DC motor governor offers precise speed control for direct current motors operating within a 4.5V to 35V voltage range, providing up to 5A of output current and 90W of power handling capability. With its compact dimensions measuring just 30mm in length, 26mm in width, and 14mm in height excluding the adjustment handle, this controller fits into space-limited installations while delivering smooth motor operation through its 20kHz PWM frequency. The governor addresses the common challenge of uncontrolled motor speed in DIY projects, robotics, and small machinery applications by offering adjustable duty cycle control from 1% to 100% via its integrated potentiometer knob.

Features and Construction

The motor governor combines practical electronic design with user-adjustable controls to deliver reliable speed regulation for various DC motor applications. Its construction prioritizes both functionality and physical compatibility with different project setups.

Material and Build

The governor incorporates standard electronic components including a potentiometer for speed adjustment, a printed circuit board for circuit implementation, and protective housing materials. The construction focuses on delivering the specified electrical performance within the compact form factor, with particular attention to heat management given the 5A current handling capability. The design includes connection terminals compatible with standard wiring for straightforward integration into existing projects or new installations.

Size and Practical Fit

Measuring 30mm long by 26mm wide by 14mm high excluding the adjustment handle, the governor offers a genuinely compact footprint suitable for installations where space is limited. These dimensions allow the controller to be mounted in confined areas of machinery, robotics projects, or hobbyist builds without requiring extensive modification to accommodate it. The physical size represents a balance between component spacing for electrical safety and minimalism for versatile placement options.

Uses and Placement

The governor serves multiple applications where controlled DC motor speed is essential, from hobby projects to functional machinery. Its voltage and current specifications determine appropriate use cases.

Event or Professional Use

In professional or event settings, this governor could manage motor speed in display elements, automated props, or presentation equipment operating on DC power within its 4.5V-35V range. The 5A output current supports motors of appropriate size for such applications, while the 20kHz PWM frequency ensures quiet operation without audible whine that might distract in quiet environments. The compact dimensions allow discreet integration into finished installations where controller visibility should be minimized.

Everyday Home Use

For home workshops, DIY projects, or hobby applications, this governor provides adjustable speed control for tools, fans, or creative projects using DC motors. The potentiometer knob offers straightforward manual adjustment without requiring programming knowledge or additional controllers. Home users benefit from the clear voltage specifications that help match the governor to appropriate power supplies and motors, while the polarity protection reminder helps prevent connection errors that could damage the unit.

Benefits and Buying Value

The governor delivers practical advantages through its combination of specifications, physical design, and operational characteristics. These elements combine to offer specific value propositions for users needing motor speed control.

Reuse and Low Maintenance

The governor supports reuse across different projects due to its adjustable voltage range covering common DC motor requirements from 4.5V to 35V. Its solid-state design with minimal moving parts aside from the potentiometer contributes to reliable operation without requiring regular maintenance. The unit's compatibility with various motor types within its current and power specifications extends its usefulness beyond single applications, representing a versatile component for electronics enthusiasts or professionals.

Why Choose This Product

This governor offers specific advantages including its 20kHz PWM frequency that eliminates audible motor whine, its compact 30mm x 26mm x 14mm dimensions for space-constrained installations, and its straightforward potentiometer control requiring no programming. The 5A output current provides sufficient capacity for many small to medium DC motor applications, while the 90W power handling matches this current capability across the voltage range. These technical specifications combined with the physical design create a balanced solution for users needing reliable speed control without excessive complexity.
