MC4 Photovoltaic Extension Cable with Halogen-Free Insulation and Tinned Copper Core for Solar Panel Systems

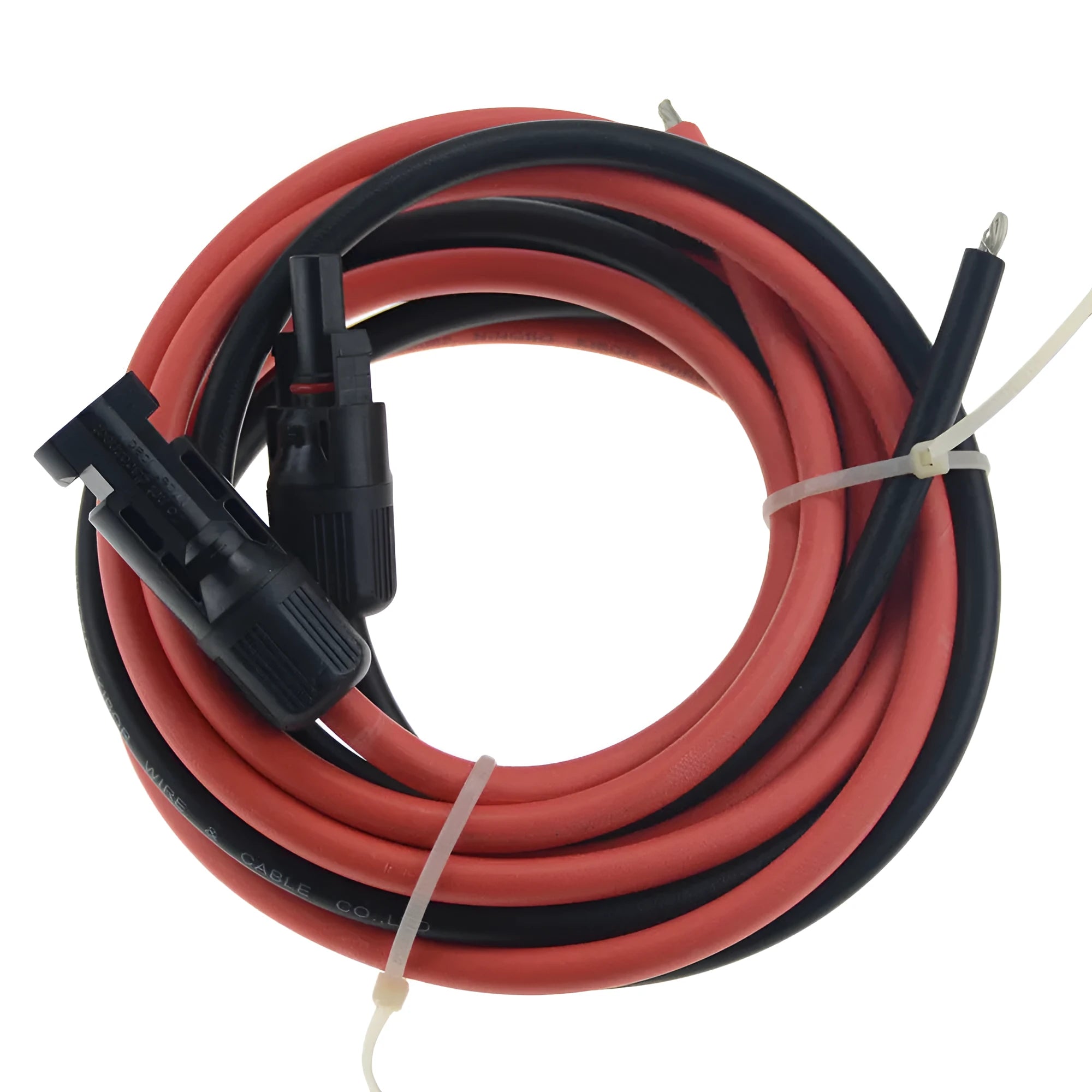

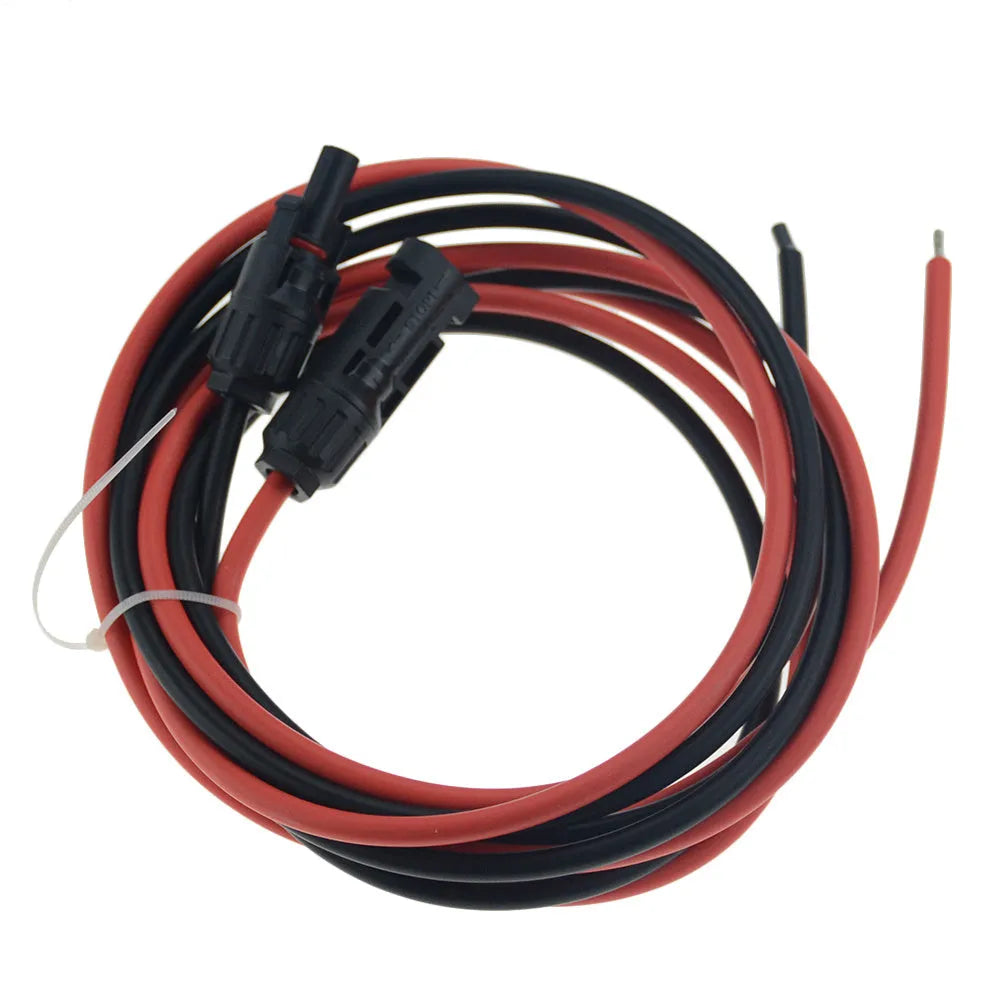

This single-core MC4 solar cable provides a practical connection solution for photovoltaic installations where panels need linking within medium and low voltage power systems rated up to 35kV. Designed specifically for new energy applications, the cable features a tinned copper wire core surrounded by low-smoke, halogen-free insulation material. Available in both black and red sheath colours and multiple lengths from 1 metre to 10 metres, it offers flexibility for various solar array layouts while prioritising safety through its reduced toxic fume emission properties if exposed to heat. The cable accommodates nominal cross-sections from 2.5mm² to 6mm² with a maximum outer diameter between 2.5mm and 6mm.

Features and Construction

The photovoltaic extension cable is built with specific materials and dimensions suited to solar energy applications. Its construction focuses on reliable electrical performance and enhanced safety characteristics for both residential and commercial photovoltaic installations.

Material and Build

The cable core consists of tinned copper wire, which provides stable electrical conductivity for solar panel connections while offering some corrosion resistance. This core is surrounded by insulation material specifically formulated to be low-smoke and halogen-free, meaning it produces minimal toxic fumes if subjected to high temperatures or fire conditions. The insulation thickness meets established reference standards for photovoltaic cables, though specific measurements should be verified against your installation requirements.

Size and Practical Fit

Available in five different lengths from 1 metre to 10 metres (specifically 1m, 2m, 3m, 5m, and 10m options), this cable provides flexibility for various solar panel spacing configurations. The nominal cross-section ranges from 2.5mm² to 6mm², accommodating different current carrying requirements. With a maximum outer diameter between 2.5mm and 6mm, the cable maintains a manageable size for routing through standard cable management systems. The black or red sheath colour options allow for basic circuit identification within your photovoltaic array.

Uses and Placement

This MC4 extension cable serves specific functions within solar energy systems, from connecting individual panels to extending existing wiring runs. Its design parameters make it suitable for both professional installations and system expansions where standardized connectors are required.

Event or Professional Use

For professional solar installers and system designers, this cable provides a component for completing photovoltaic arrays where panel spacing requires extension beyond standard cable lengths. The medium and low voltage rating (35kV and below) makes it appropriate for most residential and commercial solar installations. The halogen-free insulation material may be specified for installations where enhanced fire safety is a consideration, particularly in enclosed spaces or buildings with specific safety requirements. The availability of multiple lengths reduces the need for custom cutting in many installation scenarios.

Everyday Home Use

For residential solar system owners adding panels or making repairs, this pre-terminated MC4 cable offers a straightforward replacement or extension solution. The colour options (black or red) allow for basic organisation if expanding an existing array. The range of lengths from 1 metre to 10 metres accommodates various roof layouts and mounting configurations common in domestic installations. Since it comes ready with MC4 connectors, it simplifies DIY maintenance or expansion projects where matching existing connectors is necessary.

Benefits and Buying Value

The photovoltaic extension cable provides practical advantages through its specification-matched design and safety-enhanced materials. These benefits translate to reliable performance within solar energy systems while addressing specific installation requirements.

Reuse and Low Maintenance

The tinned copper core offers some corrosion resistance that can contribute to long-term reliability in outdoor photovoltaic applications. The halogen-free insulation maintains its properties over time without releasing harmful substances if eventually exposed to heat. The standardised MC4 connectors ensure compatibility with most solar panel systems, allowing the cable to be repurposed if system configurations change. Multiple length options mean you can select exactly what you need without excess cable that requires storage or disposal.

Why Choose This Product

This cable provides a specifically designed photovoltaic extension solution with safety-enhanced halogen-free insulation that reduces toxic fume risks. The availability of five different lengths (1m, 2m, 3m, 5m, and 10m) offers precise fitting for your solar panel spacing requirements. With both black and red colour options, you can implement basic colour coding if managing multiple circuits within your array. The tinned copper core ensures reliable conductivity for solar energy transmission while the medium/low voltage rating (up to 35kV) covers most residential and commercial photovoltaic applications.
