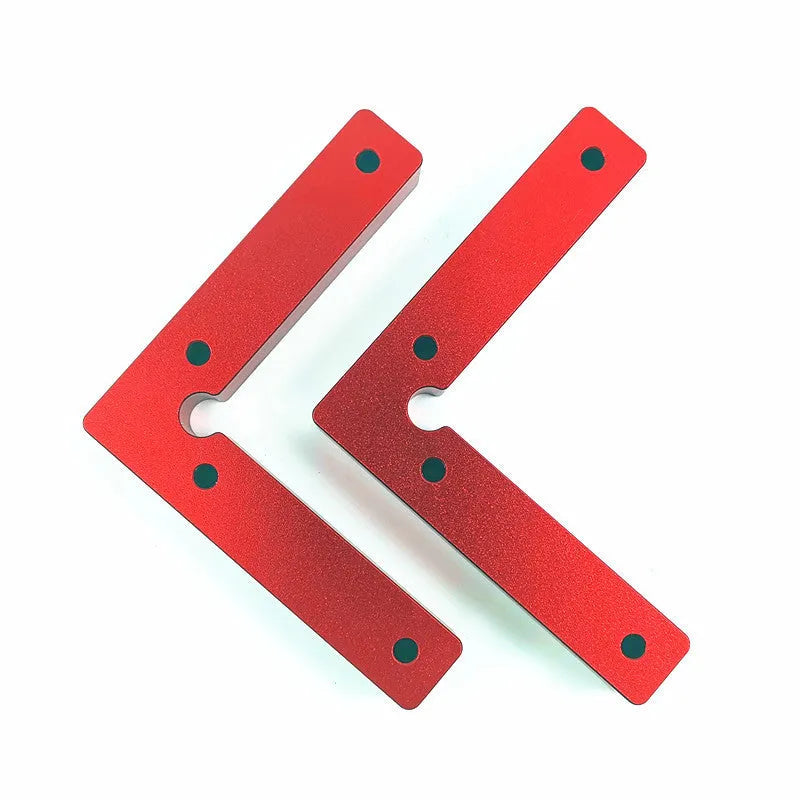

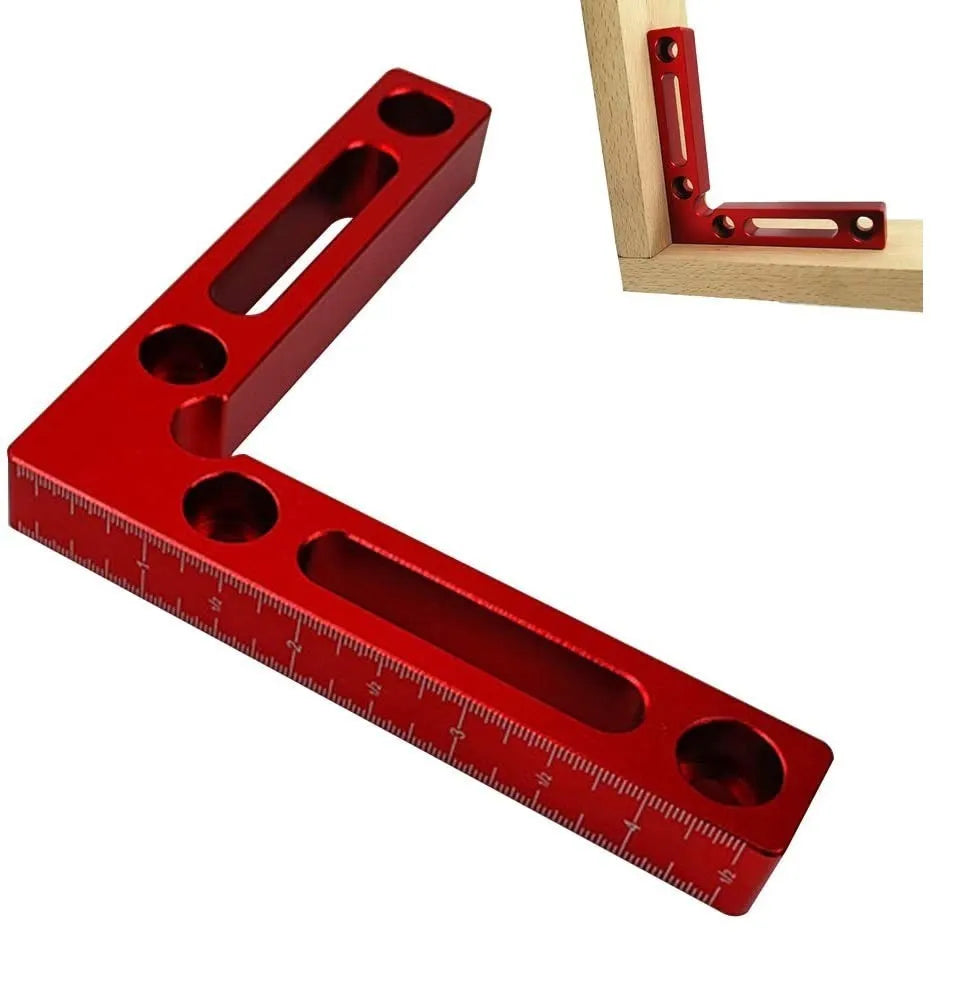

Aluminium Alloy 6061 Right Angle Positioning Block for Precision Woodworking

This woodworking right angle fixture positioning block is engineered to provide a reliable 90-degree reference for carpentry and joinery tasks. Constructed from Aluminium Alloy 6061, it offers a sturdy platform for securing workpieces during cutting, drilling, or assembly. The inclusion of an accurate scale eliminates the need for constant recalibration with separate measuring tools, streamlining the workflow for both professional joiners and hobbyist craftsmen. Whether creating picture frames, cabinet boxes, or furniture components, this tool ensures that corners remain square and cuts are true to the intended design.

Features and Construction

The core function of this block is to maintain a strict 90-degree angle, serving as a fixed guide for saws and drills. Its design prioritises stability and clarity, allowing users to focus on the cut rather than holding multiple tools in place.

Material and Build

Made from Aluminium Alloy 6061, this positioning block combines lightness with sufficient rigidity for workshop use. This specific alloy is known for its good mechanical properties and corrosion resistance, making it suitable for the varying conditions of a woodworking shop. The material allows for precise machining of the right-angle faces, ensuring that the 90-degree geometry is accurate and consistent across the entire length of the block.

Size and Practical Fit

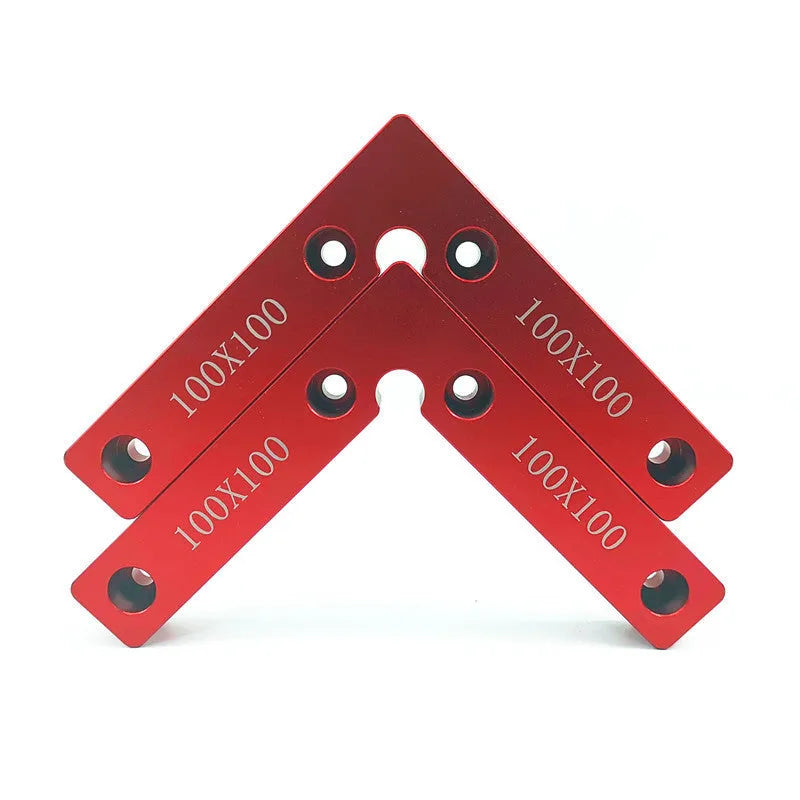

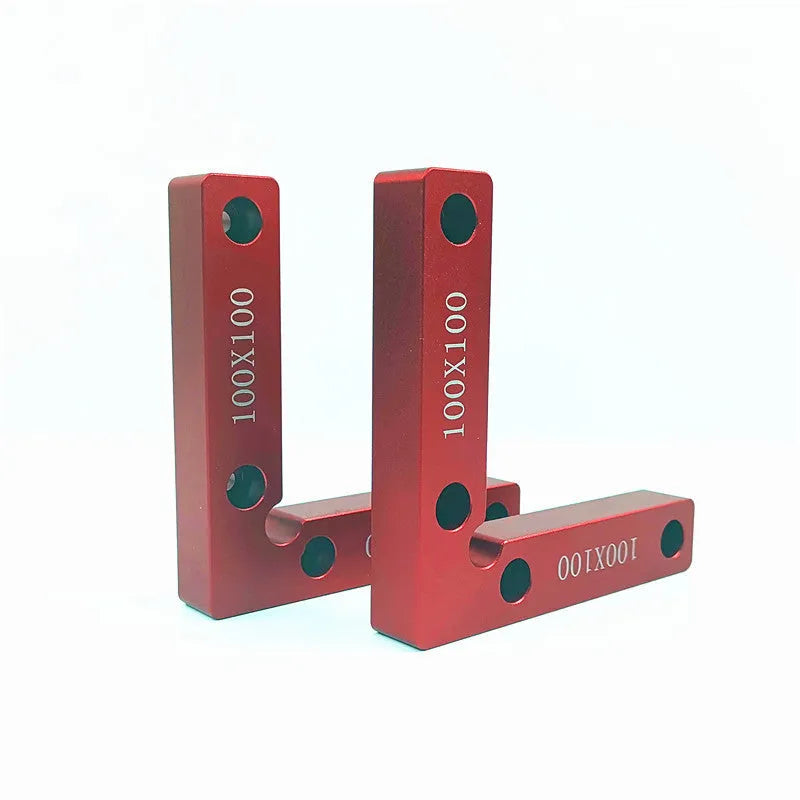

The tool is available in two specific right-angle configurations: 100 x 100 mm and 120 x 120 mm. These dimensions cater to different thicknesses of timber and varying depths required for specific jigs or clamping setups. The overall footprint of the device is 40 x 130 x 210 mm, providing a substantial base that resists tipping while remaining compact enough to store easily on a workbench or in a tool chest.

Uses and Placement

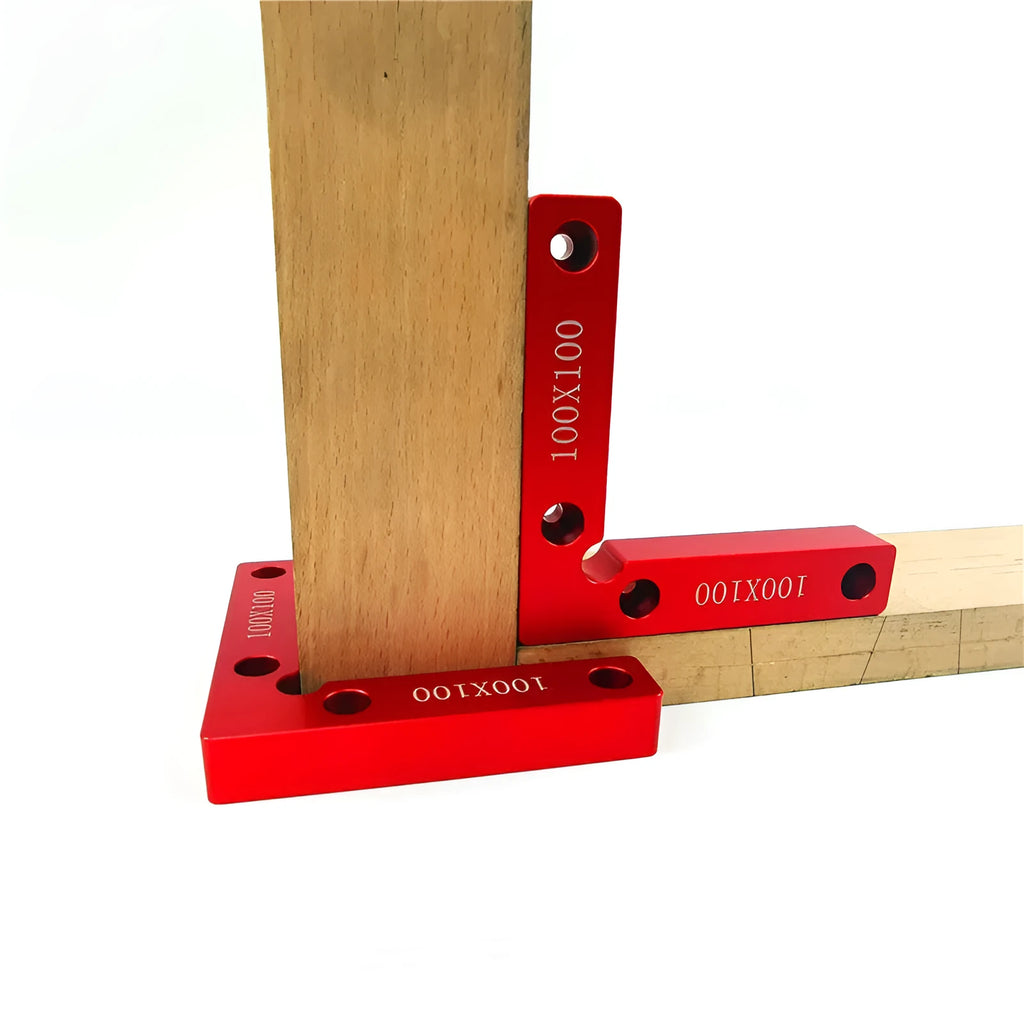

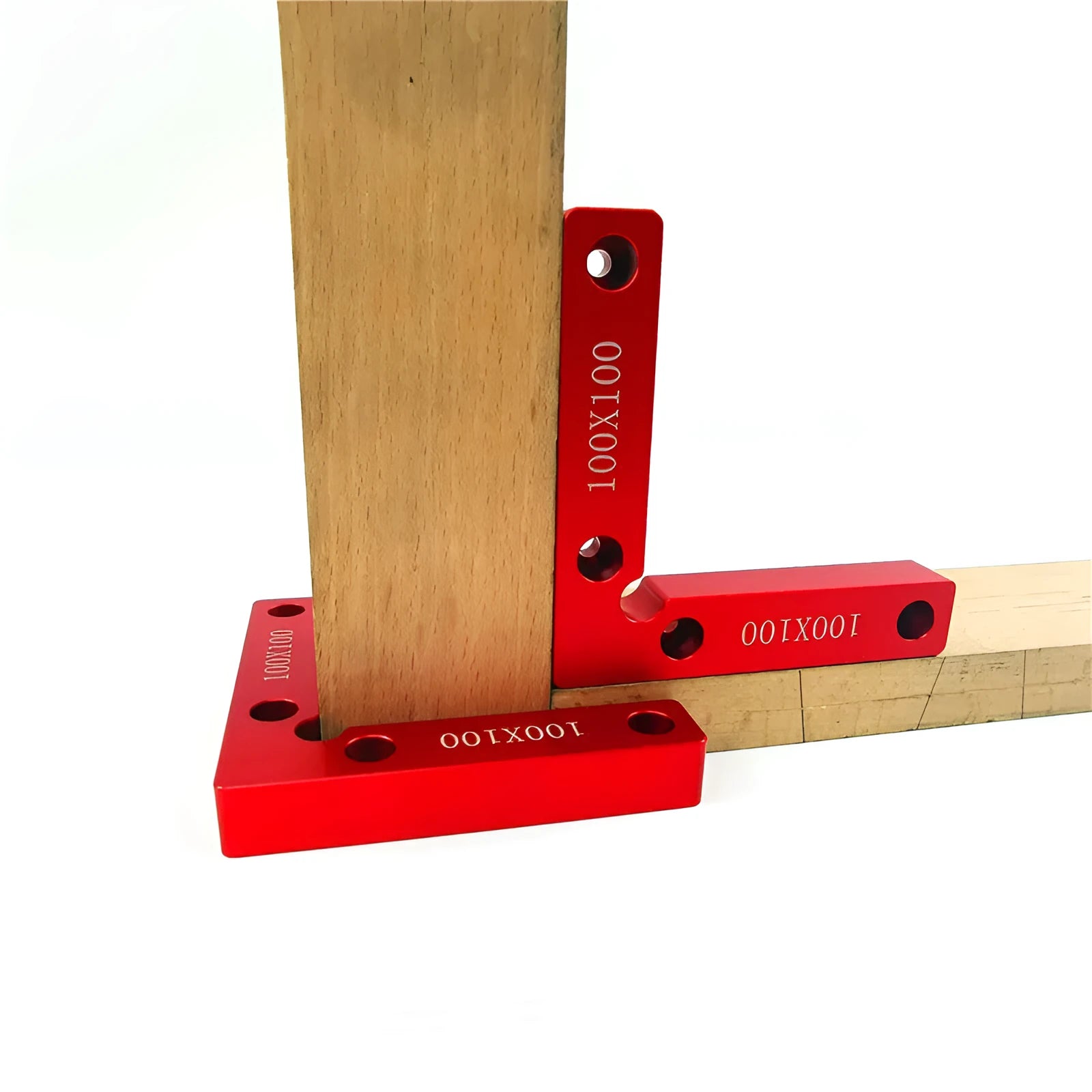

Versatility in placement and application makes this block a staple for any serious woodworker. It acts as a stationary reference point that can be clamped to a workbench or held firmly by hand for smaller tasks.

Event or Professional Use

In professional joinery settings, consistency is key. This block supports repetitive tasks such as batch-cutting frame components or assembling cabinet carcasses where every corner must be perfectly square. The integrated scale allows for rapid verification of dimensions directly at the point of work, reducing errors that can occur when moving between the workpiece and a separate tape measure.

Everyday Home Use

For DIY enthusiasts, achieving a professional finish often relies on simple aids like this right-angle block. It simplifies complex projects like building shelving units or repairing furniture by providing a guaranteed square corner. The clear markings help in marking out cut lines accurately, ensuring that home improvement projects look tidy and function correctly without the need for expensive machinery.

Benefits and Buying Value

Investing in a dedicated positioning block reduces the time spent on setup and correction. The value lies in its ability to prevent costly mistakes caused by misaligned cuts or uneven assemblies.

Reuse and Low Maintenance

The Aluminium Alloy 6061 construction ensures longevity; it does not rust like steel and is less likely to deform than plastic alternatives under normal workshop loads. Maintenance is minimal, requiring only occasional cleaning to remove sawdust or resin buildup from the scale and contact surfaces to maintain accuracy. There are no moving parts to wear out, making it a permanent addition to the toolkit.

Why Choose This Product

This product distinguishes itself through its specific material choice and dual-size availability. Unlike generic squares, it is designed as a fixture block with a substantial body (40 x 130 x 210 mm) that can act as a stop or a guide. The combination of a precise 90-degree angle, durable alloy construction, and built-in measurement scale provides a comprehensive solution for achieving accuracy in woodworking without unnecessary complexity.
